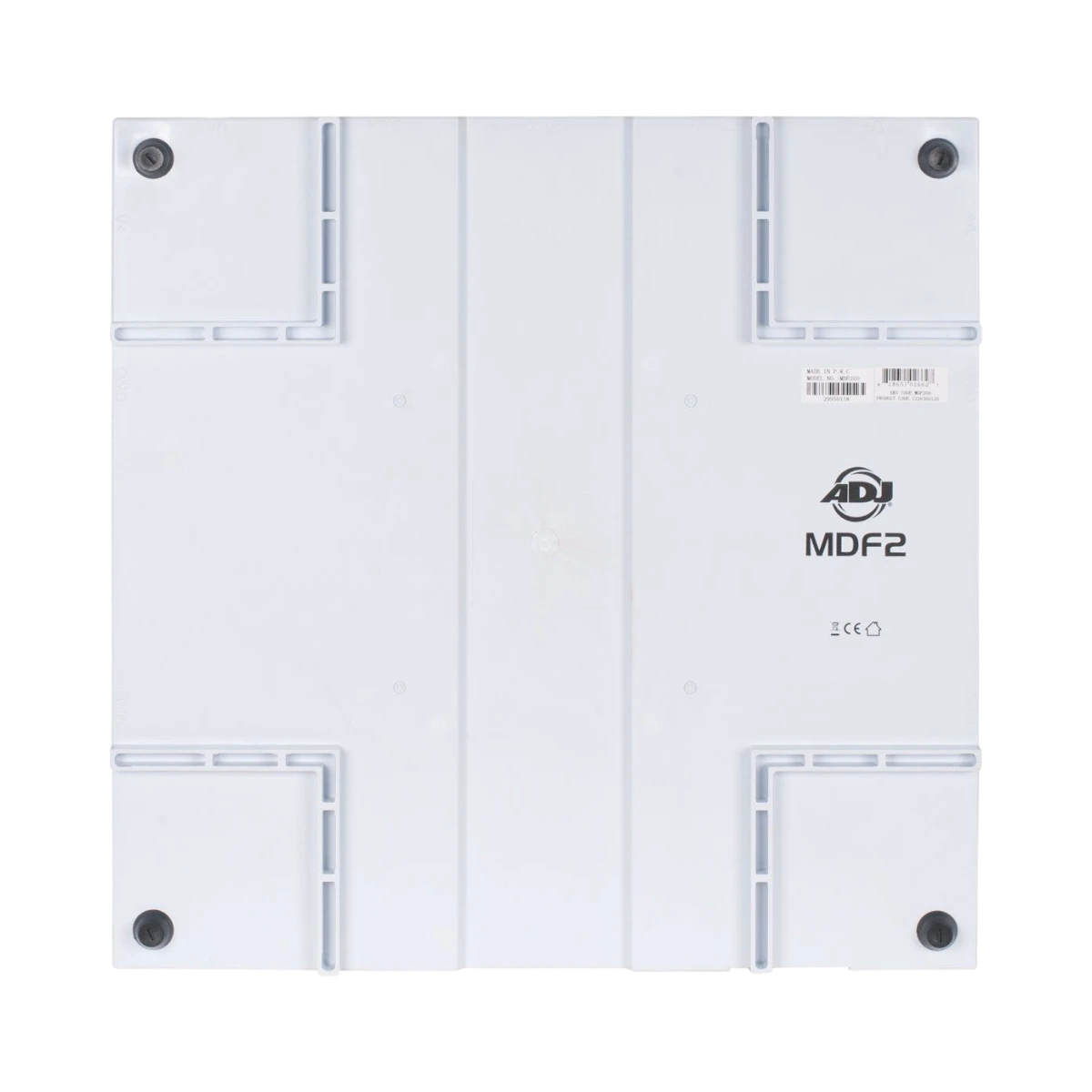

ADJ MDF2 Magnetic LED Dance Floor Panel

The ADJ MDF200 is a modular LED dance floor panel that turns an ordinary floor into a moving canvas of color for stages, clubs, and event spaces.

The panel features a tempered glass top that measures 23.62 by 23.62 inches, sitting above an array of RGB 3-in-1 LEDs. This layout delivers bright, even color that can glide from subtle mood lighting to energetic chases. The surface is rated to hold 61.5 pounds per square foot, so dancers, performers, and display pieces can move with confidence.

Handling remains simple because each panel weighs only 26.57 pounds and sits just 2.76 inches high. A magnetic locking system pulls adjoining panels into alignment and passes both power and data through the connection, eliminating loose cables and speeding up assembly.

Control is equally flexible. A standard 3-pin XLR input accepts DMX512, and multiple channel modes allow anything from straightforward color fades to custom pixel programming. With a maximum draw of only 15 watts at 24 volts DC, the panel keeps energy use low even during long shows.

Mobile DJs and production companies will value the fast load-in and load-out, while permanent venues such as nightclubs, hotel ballrooms, and retail environments gain a low-maintenance floor that can run every night. ADJ also offers a nine-panel kit with accessories, making it easy to build a full dance zone or creative runway right out of the box.

Highlights:

• RGB 3-in-1 LED light source produces a rich palette of color
• Magnetic locking system with cable free power and data pass through for quick setup
• Tempered glass surface supports 61.5 pounds per square foot
• Panel dimensions: 23.62 x 23.62 x 2.76 inches; weight: 26.57 pounds
• Consumes only 15 watts at 24 volts DC
• DMX512 control through standard 3-pin XLR connection
