1/2“ Venturi Injector with valve mixer PVDF body ozone proof ventu tube XinOzone
4.2 (84 items)
Limited Time Sale$25.49 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 203020021 | Release Date | 2025/09/21 | List Price | $25.50 | Model Number | 203020021 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

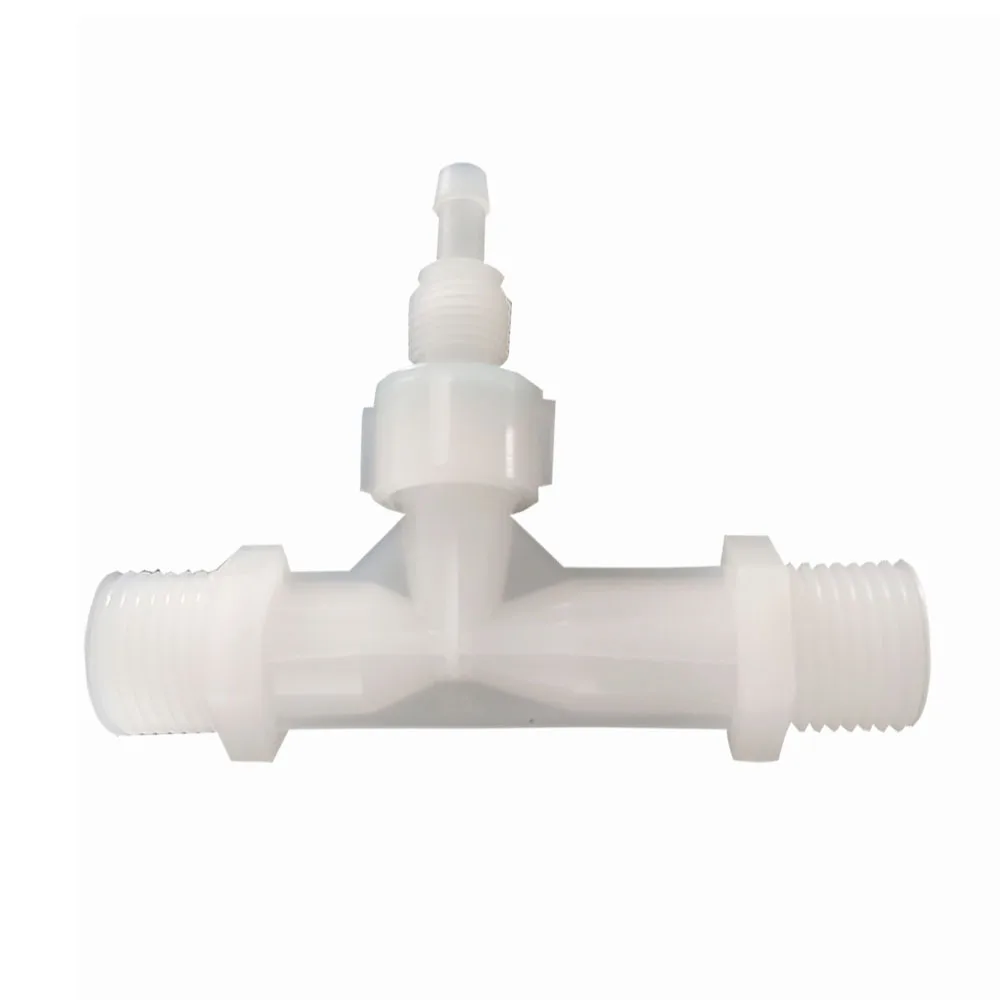

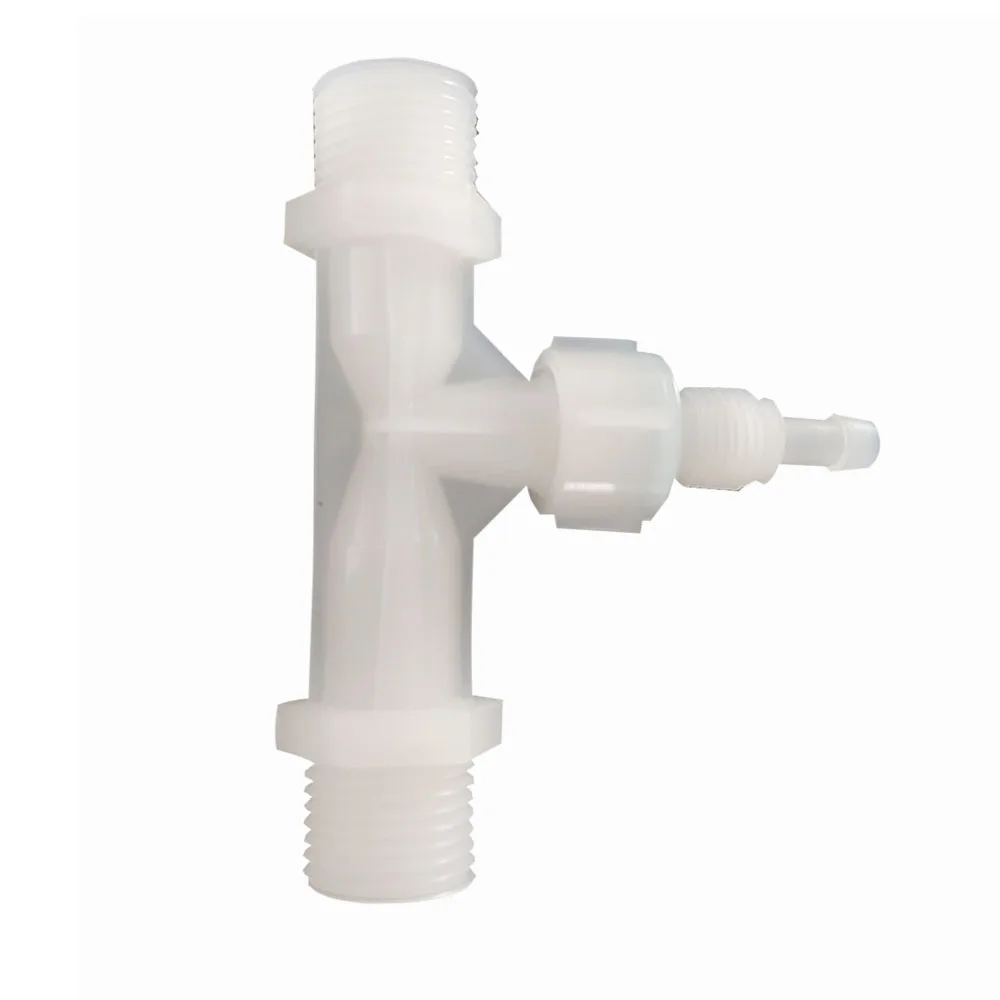

1/2" PVDF Venturi injector
This ozone venturi is designed to be used with an ozone generator for water treatment. It is excellent for ozone mass transfer. Molded PVDF & rugged construction ensure years of life. Ozone suction port quickly transfers ozone gas into water stream under pressure.
The ozone venturi injector is made of three parts, which is tressurized pipe, the suction chamber, and the nozzle. It is a gas water hybrid approach which use the venturi principle. The ozone venture produce the negative pressure which use the high-speed water flow the throat of the mixing tube, cause the vacuum state of the suction chamber, under the influence of the pressure difference, the input-gas is sucked to the mixing tube. The water is stir strongly, gas is smashed to the small air bubble, turn into Gas-water emulsion of the mist, finally, be erupt through the spread port of the mixing tube, in continued, begain the Vortex stirring in the next tube, make the gas dissolve in the water.
Specifications
1)Water Inlet & Outlet Connection: 1/2in NPT
2)Suction Port: 1/4in Barb
3)Check Valve: Included - in the suction port
4)Length: 3.7" (94.5 mm)
5) Air suction capacity （Nm3/hr）: 4-7
6) Water flow（L/h）: 200-1000
7) Input pressure (kg/cm2): 2-4
Features
1) No moving parts
2) Durable PVDF construction
3) Completely ozone compatible
4) Check valve included in injection port
5) Quick installation
